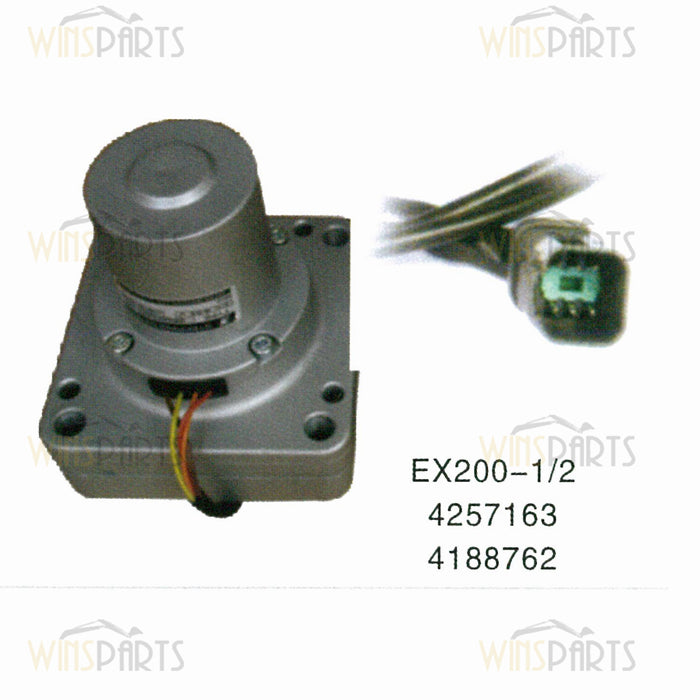

1. 4257163 [1] Electric Motor SUB FOR AT154932
3. 4257159 [2] Bracket SUB FOR AT154243
4. 3051015 [1] Lever SUB FOR AT154897
5. 94-2204 [1] Shaft Key SUB FOR AT155185
8. 14M7272 [4] Nut M6
9. 12M7006 [6] Lock Washer 6 MM
10. 4257162 [1] Stud SUB FOR AT154931
12. 40M7188 [1] Snap Ring
14. 4257164 [1] Sensor SUB FOR AT154933
15. 19M8553 [2] Screw M6 X 16
16. 4254025 [1] Link SUB FOR AT154927
17. 4254023 [2] Bolt M6 X 13 SUB FOR AT154926
22. 19M7164 [1] Cap Screw M8 X 50
25. 4260781 [2] Bushing 14 X 16 X 15 MM (0.551" X 0.630" X 0.591") SUB FOR AT154938
26. 2030310 [1] Lever SUB FOR AT154894
28. 19M8499 [4] Cap Screw M10 X 60
28. 12M7066 [4] Lock Washer 10 MM
29. 40M7202 [2] Snap Ring
30. 9095828 [1] Spring Assembly SUB FOR AT155179
30A. 4722815 [2] Ball Joint SUB FOR 4056017 AND TH102073
30B. ........ [1] Bushing
30C. 40M7136 [1] Snap Ring
30D. 14M7272 [2] Nut M6
30E. ........ [1] Spring
30F. J900614 [1] Bolt SUB FOR TH104056
30F. 12M7006 [1] Lock Washer 6 MM
30G. ........ [1] Plate AT154943 NLA
30H. ........ [1] Plate
30I. ........ [1] Ring
30J. ........ [1] Rod
30K. ........ [1] Washer
31. 14M7273 [1] Nut M8
32. 4271909 [1] Spring SUB FOR AT154946
33. 7024515 [1] Bracket SUB FOR AT155150
34. 12H317 [1] Lock Washer 9/16"
9095590 [1] MOTOR ASS'Y
01. 4257163 [1] MOTOR;STEP
03. 4257159 [2] BRACKET
04. 3051015 [1] LEVER
05. 94-2204 [1] KEY
08. M500605 [4] NUT
09. A590906 [6] WASHER;SPRING
10. 4257162 [1] PIN
11. 4260781 [2] BUSHING
12. 991337 [1] RING;RETAINING
13. 2030310 [1] LEVER
14. 4257164 [1] SENSOR;ANGLE
15. M340616 [2] BOLT;SOCKET
16. 4254025 [1] LINK
17. 4254023 [2] PIN
22. 4257161 [1] BOLT
25. J011060 [4] BOLT;SEMS
26. 991336 [2] RING;RETAINING
27. 9095828 [1] SPRING ASS'Y
27A. 4056017 [2] JOINT;BALL
27B. 4261314 [1] BUSHING
27C. 4064463 [1] RING;RETAINING
27D. M500605 [2] NUT
27E. 4258876 [1] SPRING
27F. J010614 [1] BOLT;SEMS
27G. 4266428 [1] SEAT;SPRING
27H. 4278445 [1] SEAT;SPRING
27I. 9737377 [1] RING
27J. 4278473 [1] ROD
27K. 4278446 [1] SPACER
28. 4271909 [1] SPRING
29. M500807 [1] NUT
30. 7024514 [1] BRACKET
31. A590914 [1] WASHER;SPRING
The price is for reference only, please contact us by email and the actual quotation shall prevail.
| PACKAGE: | Original packing or Neutral packing with wooden box or carton. |
| SHIPPING: | It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and etc). |
| PAYMENT: | T/T,Western Union,Paypal,Alipay,Cash. |
| LADING: | When the goods shipping , i will email u for tracking number for goods. i can offer bill of lading to u . |
