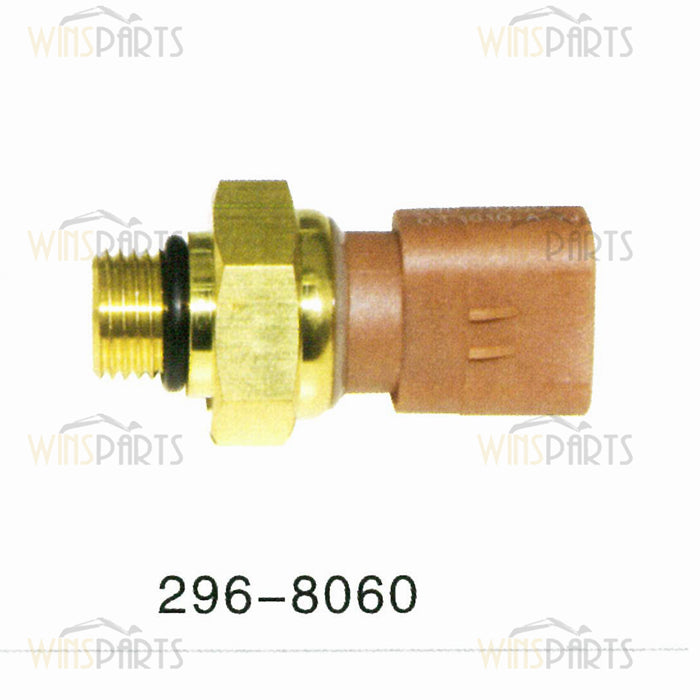

1. 296-8060 [1] SENSOR GP-PRESSURE
2. 214-7568 [1] SEAL-O-RING
1. 366-9312 [1] SENSOR AS-PRESSURE
1A. 3K-0360 [1] SEAL-O-RING
2. 366-9313 [1] HARNESS AS-SENSOR
9X-3401 [3] PIN-CONNECTOR (16-GA TO 18-GA)
230-4013 [1] PLUG AS-CONNECTOR (3-PIN)
264-7030 [1] SEAL-CONNECTOR
102-8803 [1] KIT-RECEPTACLE (3-PIN)
(INCLUDES RECEPTACLE AS & WEDGE)
9X-3402 [3] SOCKET-CONNECTOR (16-GA TO 18-GA)
1. 434-3436 [1] SENSOR AS-PRESSURE (BOOM CYLINDER)
1A. 3K-0360 [1] SEAL-O-RING
2. 366-9313 [1] HARNESS AS-SENSOR
102-8803 [1] KIT-RECEPTACLE (3-PIN)
(INCLUDES RECEPTACLE AS & WEDGE)
9X-3402 [3] SOCKET-CONNECTOR (16-GA TO 18-GA)
-OR-
126-1768 [3] SOCKET-CONNECTOR (14-GA TO 16-GA)
9X-3401 [3] PIN-CONNECTOR (16-GA TO 18-GA)
-OR-
126-1767 [3] PIN-CONNECTOR (14-GA TO 16-GA)
230-4013 [1] PLUG AS-CONNECTOR (3-PIN)
264-7030 [1] SEAL-CONNECTOR
1. 228-4947 [2] SEAL-O-RING
2. 245-4630 [1] SENSOR GP-SPEED
1. 4P-5820 Y [1] SENSOR GP-SPEED
2. 188-2128 [1] PLUG AS
8T-8737 [2] PLUG-SEAL
155-2270 [1] KIT-CONNECTING PLUG (2-PIN)
(INCLUDES PLUG AS & WEDGE)
Y SEPARATE ILLUSTRATION
1. 171-5349 [1] STRAP-MARKER
2. 102-8802 [2] KIT-RECEPTACLE (2-PIN)
(INCLUDES RECEPTACLE AS & WEDGE)
3. 186-3735 [2] PIN-CONNECTOR (16-GA TO 18-GA)
4. 9X-1386 E SLEEVE (14-CM)
E ORDER BY THE CENTIMETER
1. 130-9811 [1] SENSOR GP-TEMPERATURE (FUEL)
2. 8L-2786 [1] SEAL-O-RING
1. 264-4297 C [1] SENSOR AS-TEMPERATURE (2-PIN)
137-6645 PAD-CONNECTOR
2. 238-5080 [1] SEAL-O-RING
C CHANGE FROM PREVIOUS TYPE
1. 256-6453 [1] SENSOR-TEMPERATURE (2-PIN)
2. 6V-6609 [1] SEAL-O-RING
1. 256-6453 [1] SENSOR-TEMPERATURE (2-PIN)
2. 238-5080 [1] SEAL-O-RING
