1. 9G-5127 [1] BREATHER (ATMOSPHERIC)(ATMOSPHERIC)
2. 9X-0263 [2] ADAPTER
3. 102-2240 Y [1] SENSOR GP-TEMPERATURE (3-PIN)(AFTERCOOLER TEMPERATURE)
4. 111-3684 [1] HOSE AS
5. 161-9926 Y [1] SENSOR GP-PRESSURE (TURBOCHARGER INLET, LH)
5A. 161-9926 Y [1] SENSOR GP-PRESSURE (TURBOCHARGER INLET, RH)
5B. 161-9926 Y [1] SENSOR GP-PRESSURE (ATMOSPHERIC AIR)
5C. 161-9926 Y [1] SENSOR GP-PRESSURE (CRANKCASE)
6. 194-6724 Y [1] SENSOR GP-PRESSURE (TURBOCHARGER OUTLET)

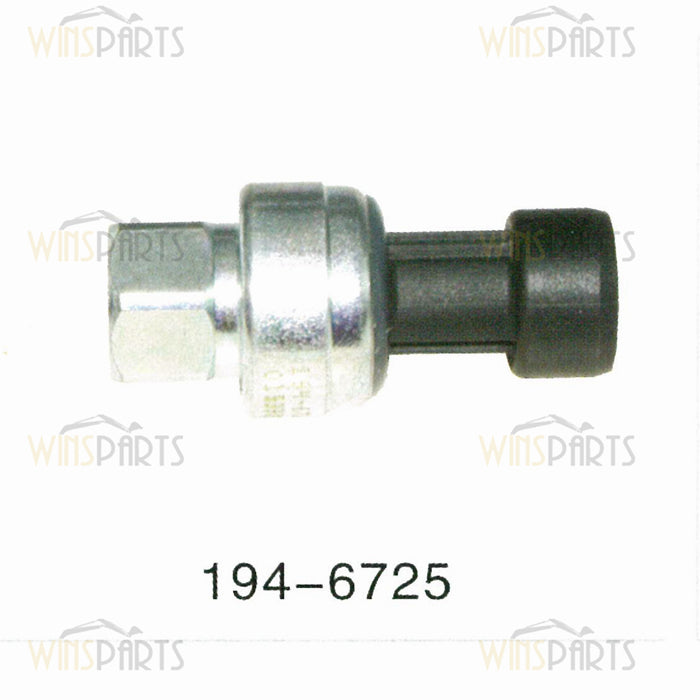

7. 194-6725 Y [1] SENSOR GP-PRESSURE (FILTERED OIL)
7A. 194-6725 Y [1] SENSOR GP-PRESSURE (UNFILTERED FUEL)
7B. 194-6725 Y [1] SENSOR GP-PRESSURE (FILTERED FUEL)
7C. 194-6725 Y [1] SENSOR GP-PRESSURE (UNFILTERED OIL)
8. 253-7340 Y [1] HARNESS AS-ENGINE
9. 261-6847 [2] ADAPTER
10. 261-6848 [1] SENSOR GP-EXHAUST TEMPERATURE (TURBOCHARGER INLET, LH)
10A. 261-6848 [1] SENSOR GP-EXHAUST TEMPERATURE (TURBOCHARGER INLET, RH)
(EACH SENSOR GP INCLUDES)
102-8803 [1] KIT-RECEPTACLE (3-PIN)
(INCLUDES RECEPTACLE AS & WEDGE)
8T-8729 [3] PIN-CONNECTOR (16-GA TO 18-GA)
11. 273-5041 Y [1] SENSOR GP-SPEED (ENGINE TIMING)
12. 001-9440 [1] CONNECTOR
13. 0S-0509 [12] BOLT (3/8-16X0.75-IN)
14. 0S-1590 [1] BOLT (3/8-16X2-IN)
15. 0S-1591 [3] BOLT (3/8-16X1.5-IN)
16. 0S-1594 [14] BOLT (3/8-16X1-IN)
17. 117-0067 [4] ELBOW
18. 3A-3692 [2] CLIP
19. 3B-1915 [2] BOLT (3/8-16X1.375-IN)
20. 3K-0360 [1] SEAL-O-RING
21. 4P-7581 [21] CLIP (LADDER)
22. 4P-8134 [29] CLIP (LADDER)
23. 5M-2894 [32] WASHER-HARD (10.2X18.5X2.5-MM THK)
24. 5P-3426 [1] ELBOW
25. 6K-8179 [1] CLIP
26. 6V-5048 [17] SEAL-O-RING
27. 6W-6672 [1] SPACER (10.5X20X38-MM THK)
28. 7K-1181 [58] STRAP-CABLE
29. 9M-4594 [3] SPACER (0.406X0.875X0.75-IN THK)
30. 9X-0262 [3] ADAPTER
Y SEPARATE ILLUSTRATION
