VOE11412633 Compressor Volvo.Heavy parts EC55C, EC60C, EC60E, EC80D, ECR58, ECR58D, ECR88, ECR88D, EW60C, EW60E Compressor Excavator Air Conditioner Compressor A/C Condenser Evaporator Blower Air conditioning expansion valve Air Conditioning Ducts Control panel Servo motor

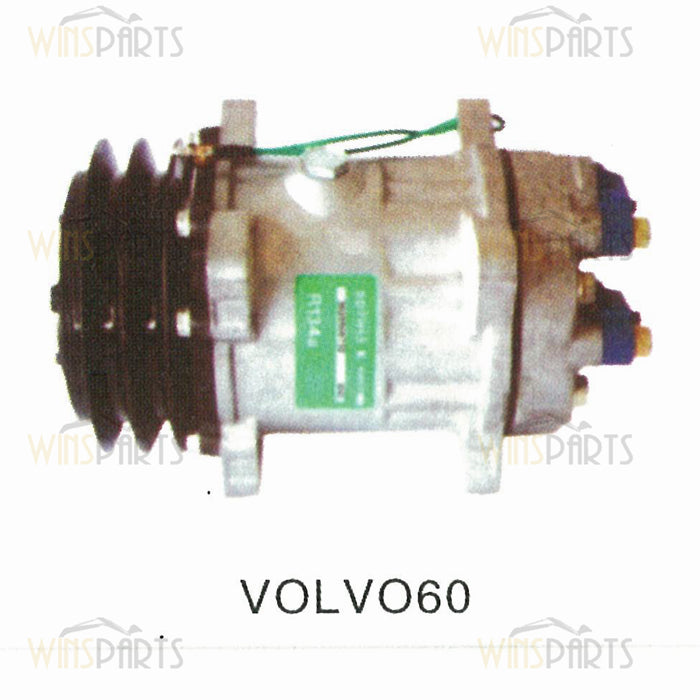

VOE11412633 VOE 11412633 VOE14556595 VOE14720502 Air Compressor Assy Air Conditioner A/C Volvo Heavy EC55 EC60 EC80D EC60D Excavator parts
VOE11412633 VOE 11412633 VOE14556595 VOE14720502 Air Compressor Assy Air Conditioner A/C Volvo Heavy EC55 EC60 EC80D EC60D Excavator parts
1. VOE14675155 [1] Hose
2. VOE14675154 [1] Hose
3. VOE14675153 [1] Hose
4. VOE14883702 [1] Hose
5. VOE14882738 [1] V-belt
6. VOE14675152 [1] Pulley
7. VOE14511074 [2] Drain hose
8. VOE11412633 [1] Compressor
VOE14645662 [1] Clutch
9. VOE14522473 [1] Washer
10. VOE14720502 [1] Condenser
11. VOE14612048 [1] Filter
12. VOE14591545 [1] Switch
13. VOE914515 [1] Retaining ring
14. VOE14642261 [1] Air duct
15. VOE14505515 [1] Sensor
16. VOE14675151 [1] Wiring harness
VOE11428051 [1] Housing
17. VOE14680597 [1] Air duct
18. VOE14680596 [1] Air conditioning unit
19. VOE14680827 [1] Valve
20. VOE14650117 [1] Bracket
21. VOE14880567 [1] Hose
22. VOE14883709 [1] Hose
23. VOE14576493 [1] Elbow
24. VOE14617937 [1] Clip
25. VOE14587635 [1] Clip
26. VOE14500295 [2] Clip
27. VOE14529012 [1] Hose nipple
28. VOE14556957 [2] Bracket
29. VOE14559099 [1] Bracket
30. VOE14880627 [2] Clip
31. VOE946471 [20] Flange screw
32. VOE946441 [8] Flange screw
33. VOE14515524 [7] Clip
34. VOE14511415 [2] Clamp S/N -312503
34. VOE14732558 [2] Clip S/N 312504-
35. VOE13965185 [4] Screw
36. VOE992040 [3] Plain washer
37. VOE993149 [1] Hex. socket screw
38. VOE13946752 [1] Screw
39. VOE60113082 [2] Flange screw
40. VOE945414 [2] Flange screw
41. VOE13971098 [2] Flange nut
42. VOE983304 [2] Hexagon nut
43. VOE13945407 [4] Nut
44. VOE969513 [1] Six point socket screw
45. VOE14500293 [2] Clip
46. VOE60113094 [1] Flange screw
47. VOE983251 [2] Hexagon screw
48. VOE14690665 [4] Clip
49. VOE14500297 [2] Clip
50. VOE979708 [1] Flange screw
51. VOE947167 [1] Hex. socket screw
52. VOE14665024 [1] Plate
VOE14680596 [1] Air conditioning unit
1. VOE14585357 [1] Fan
2. VOE14557216 [1] Radiator
3. VOE14692225 [1] Cooling system
4. VOE16688307 [1] Sensor
5. VOE14509345 [1] Clip
6. VOE14560841 [1] Wiring harness
7. VOE14514720 [4] Grommet
8. VOE14557227 [1] Clip
9. SA9025-05002 [11] Cross recessed screw
10. VOE14557217 [1] Valve
11. VOE14693879 [1] Pipe
12. VOE13946544 [12] Screw
13. VOE14591289 [4] Nut
14. VOE959220 [1] Hex. socket screw
15. VOE14693880 [2] Hose
16. VOE14690665 [4] Clip
17. VOE14689731 [2] Hose nipple
1. VOE14569191 [2] Actuator
2. VOE14693890 [1] Shutter
3. VOE14557935 [12] Clip
4. VOE14557934 [4] Screw
5. VOE14690664 [1] Shutter
6. SA9025-05002 [1] Cross recessed screw
7. VOE14680598 [1] Filter
8. VOE14693886 [1] Shutter
9. VOE14693887 [1] Actuator
10. VOE14614296 [1] Filter
11. VOE14514330 [1] Sensor SE8706
12. VOE14557934 [2] Screw
13. SA9025-05002 [6] Cross recessed screw
14. VOE14680609 [1] Air duct
15. VOE14680610 [1] Air duct
16. VOE14680599 [1] Air duct
17. VOE14680600 [1] Air duct
18. VOE14680602 [1] Air duct
19. VOE11412071 [3] Nozzle
20. VOE11412785 [2] Air outlet
21. VOE14680607 [2] Sponge
22. VOE14680605 [4] Sponge
23. VOE997500 [16] Six point socket screw
24. VOE14650121 [1] Nozzle
1. VOE14556595 [1] Compressor MA8701
2. VOE14720502 [1] Condenser
3. VOE14612048 [1] Filter
4. VOE14591545 [1] Switch SE8701
VOE914515 [1] Retaining ring
5. VOE14882398 [1] Hose
6. VOE14708081 [1] Hose
VOE14727521 [1] Sealing ring
7. VOE14705795 [1] Hose
8. VOE14708085 [1] Hose
VOE14727521 [1] Sealing ring
9. VOE14717669 [1] Bracket
10. VOE14528506 [1] Adjusting device
11. VOE14529012 [1] Hose nipple
12. VOE14529015 [1] Valve
13. VOE14529046 [2] Grommet
14. VOE14529252 [2] Grating
15. VOE14713271 [1] Switch CU8701
16. VOE14881279 [1] V-belt
17. VOE14511415 [4] Clamp
18. VOE14610293 [1] Relay RE8701
19. VOE14880426 [4] Washer
20. VOE992040 [1] Plain washer
21. SA9314-02300 [REQ] Cable tie
22. SA9021-10403 [4] Cross recessed screw
23. SA9315-03001 [2] Clip
24. SA9316-03601 [4] Clip
25. SA9751-33606 [2] Grommet
26. VOE991637 [2] Hexagon screw
27. VOE13945407 [2] Nut
28. VOE946441 [4] Flange screw
29. VOE946471 [6] Flange screw
30. VOE955922 [3] Spring washer
31. VOE13965185 [1] Screw
32. VOE969405 [1] Six point socket screw
33. VOE984079 [2] Hex. socket screw
34. VOE60110353 [2] Washer
35. VOE13946934 [2] Screw
36. VOE984082 [1] Hex. socket screw
37. VOE14706078 [1] Bracket
38. VOE13971068 [2] Hexagon nut
39. [1] Climate housing
40. VOE14881134 [1] Hose
41. VOE14603978 [1] Bracket
42. VOE14500295 [1] Clip
43. VOE60110387 [1] Plain washer
44. VOE60113344 [1] Hexagon screw
45. VOE60113246 [1] Flange screw
The price is for reference only, please contact us by email and the actual quotation shall prevail.
| PACKAGE: | Original packing or Neutral packing with wooden box or carton. |
| SHIPPING: | It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and etc). |
| PAYMENT: | T/T,Western Union,Paypal,Alipay,Cash. |
| LADING: | When the goods shipping , i will email u for tracking number for goods. i can offer bill of lading to u . |
